Chemical & Electric Diaphragm Pumps Supplier

Shanghai Haoyang Pump Valve Manufacturing Co., Ltd. Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.
ABOUT US
Your Expert in Fluid Transportation
Shanghai Haoyang Pump Valve Manufacturing Co., Ltd. is a China Chemical Diaphragm Pumps Supplier and Wholesale Electric Diaphragm Pumps Exporter. Established in 2006, Shanghai Haoyang Pump Valve Manufacturing Co., Ltd. is a specialized enterprise dedicated to the development, design, manufacturing, sales, and service of diaphragm pumps. Our company boasts modern standard workshops and has introduced advanced automation equipment along with reliable processing technologies. Recognized as a "High and New Technology Enterprise" by the state in 2020, we have been granted multiple patents and all our products have received the European CE certification, in addition to passing the ISO 9001 quality management system certification.
Our HY series of air-operated diaphragm pumps, while retaining the advantages of similar products, have been meticulously refined, absorbed, and innovated upon. They are characterized by their environmental friendliness, energy efficiency, explosion-proof capabilities, versatility, high stability, and trouble-free operation.
View More
Shanghai Haoyang Pump Valve Manufacturing Co., Ltd. Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.
  • 0m²

    Production Base Area

  • 0+

    Export Country

  • 0+

    Technical staff

  • 0+

    Project Case

Certificate Of Honor
  • CE Certificate
  • ISO900
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
NEWS CENTER
Latest News and Events Share With You
  • Diaphragm Pump Troubleshooting: Diagnose Air, Valve, and Diaphragm Issues

    At 2 a.m., an air-operated diaphragm pump on a batch line stops moving product, and the first instinct on the floor is to open the wet end. That is usually the wrong move. In field service, four subsystems account for almost every complaint: the air supply, the check valves, the diaphragms, and th...

    Diaphragm Pump Troubleshooting: Diagnose Air, Valve, and Diaphragm Issues
  • Diaphragm Pump vs Peristaltic Pump: Key Differences, Costs, and Selection Guide

    Your chemical feed skid keeps losing prime, or the dosing line needs to hold ±1% accuracy at 50 mL/min. The pump you choose between a diaphragm pump and a peristaltic pump changes maintenance intervals, spare parts, and the risk of shear damage. Short answer: a diaphragm pump is usually the better...

    Diaphragm Pump vs Peristaltic Pump: Key Differences, Costs, and Selection Guide
  • Diaphragm Pump vs Centrifugal Pump: Which One Fits Your Process Duty Best?

    A 4,000 cps acrylic coating, an IBC tote that has to be emptied, and a spare centrifugal pump on the shelf. The centrifugal unit cavitates, the coating comes out sheared and thinner, and the seal starts weeping within a few weeks. Move the same job to a diaphragm pump and it self-primes from the t...

    Diaphragm Pump vs Centrifugal Pump: Which One Fits Your Process Duty Best?

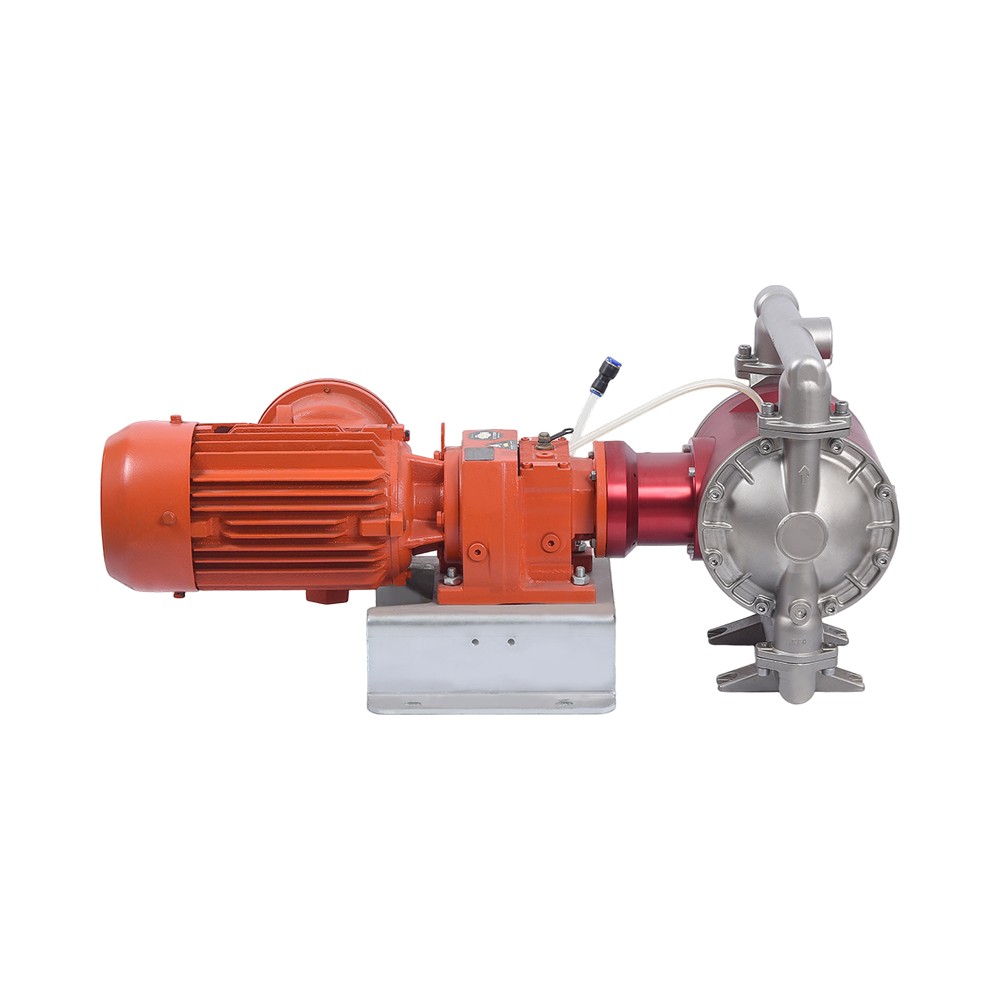

Electric diaphragm pumps Industry knowledge

In the complex landscape of industrial fluid handling, Chemical & Electric Diaphragm Pumps represent the most versatile solution for transporting challenging media. These pumps operate on a displacement principle, utilizing a flexible diaphragm to move liquids without the need for mechanical seals or packing. This sealless design is the primary defense against leakage, making Chemical & Electric Diaphragm Pumps the industry standard for handling corrosive, abrasive, and flammable substances.

As a specialized China diaphragm pump manufacturer since 2006, Shanghai Haoyang Pump Valve Manufacturing Co., Ltd. has redefined the performance benchmarks of these units. By integrating advanced automation with modern standard workshops, our HY series provides unmatched stability and energy efficiency. Recognized as a "High and New Technology Enterprise," we ensure that every pump delivers a trouble-free operation life cycle, supported by multiple national patents and full European CE certification.

Comparative Analysis: Air-Operated vs. Electric Drive

Understanding the distinction between pneumatic and electric drive systems is essential for optimizing plant efficiency. While both belong to the Chemical & Electric Diaphragm Pumps category, their internal mechanics cater to different operational environments.

Table 1: Comprehensive Performance Comparison Matrix
Feature HY Air-Operated (AODD) Electric Diaphragm (EODD)
Drive Mechanism Compressed Air / Pneumatic Electric Motor + Gearbox
Safety Rating Intrinsically Explosion-proof Requires Explosion-proof Motor
Suction Lift Excellent (Up to 7m wet) Good (Up to 5m wet)
Energy Consumption Higher (Air losses) Lower (Direct electric)
Maintenance Frequency Low (Few moving parts) Moderate (Gear lubrication)

Principles and Core Technologies

Operational Principle

The pump consists of two chambers. In an AODD pump, the air valve directs compressed air behind diaphragm A, causing it to move outward and displace fluid. Simultaneously, diaphragm B is pulled inward, creating a vacuum to draw in new fluid. In electric versions, a mechanical eccentric shaft performs the same reciprocating movement. Shanghai Haoyang utilizes high-grade elastomers like PTFE, Viton, and Santoprene to ensure the diaphragms withstand millions of flex cycles.

Advanced Material Engineering

The body of our Chemical & Electric Diaphragm Pumps is available in Aluminum Alloy, Cast Steel, Stainless Steel, Polypropylene (PP), and PVDF. This allows our equipment to handle fluids with pH levels ranging from 0 to 14. Our unique "No-Stall" air valve technology ensures that the pump never gets stuck at dead centers, even under low-pressure conditions.

Industrial Application Scenarios

  • Petrochemical Industry: Used for benzene, xylene, and heavy crude oil transfer where explosion-proof performance is mandatory.
  • Fine Chemical Production: Safe handling of highly concentrated sulfuric acid, nitric acid, and organic solvents.
  • Ceramic & Mining: Pumping abrasive glaze, lime slurry, and mining tailings with zero abrasive wear to the internal motor.
  • Food & Beverage: Stainless steel models are utilized for transferring syrups, chocolate, and fruit pulps with high hygiene standards.

Case Study: A major pharmaceutical manufacturer replaced their gear pumps with Shanghai Haoyang HY series diaphragm pumps. The result was a 50% reduction in leak-related waste and a significant decrease in mechanical maintenance costs, as the diaphragm design requires no mechanical seals.

Professional Maintenance and Longevity Strategy

To maximize the ROI of your Chemical & Electric Diaphragm Pumps, a structured maintenance schedule is recommended:

  1. Air Quality Management: For pneumatic models, ensure the air supply is dry and filtered. Moisture in the air line can lead to icing in the exhaust muffler.
  2. Diaphragm Inspection: Check for "dimpling" or thinning every 2,000 operating hours. Shanghai Haoyang provides high-durability replacement kits to restore factory performance.
  3. Torque Verification: Due to the reciprocating nature of the pump, bolts on the fluid covers should be checked periodically to prevent air or liquid leaks.
  4. Solid Size Limits: Ensure the particle size in the fluid does not exceed the maximum allowable diameter for your specific HY model (typically up to 9mm for large units).

Frequently Asked Questions (FAQ)

Q: What is the maximum viscosity these pumps can handle?

A: Chemical & Electric Diaphragm Pumps from Shanghai Haoyang can handle viscosities up to 10,000 cps, making them ideal for thick resins and sludges that would stall other pump types.

Q: Can the pump operate if the discharge valve is closed?

A: Yes. Pneumatic models will simply "stall" without damage when the discharge pressure equals the air inlet pressure. Electric models require a pressure bypass or VFD to prevent motor overload.

Q: How does Shanghai Haoyang ensure product quality?

A: We utilize an ISO 9001 quality management system. Every pump undergoes a 100% factory test for suction, discharge, and leakage before shipping, ensuring it meets our rigorous stability standards.
