Name: 1' PVDF diaphragm pump
Rating: 5 (99 reviews)

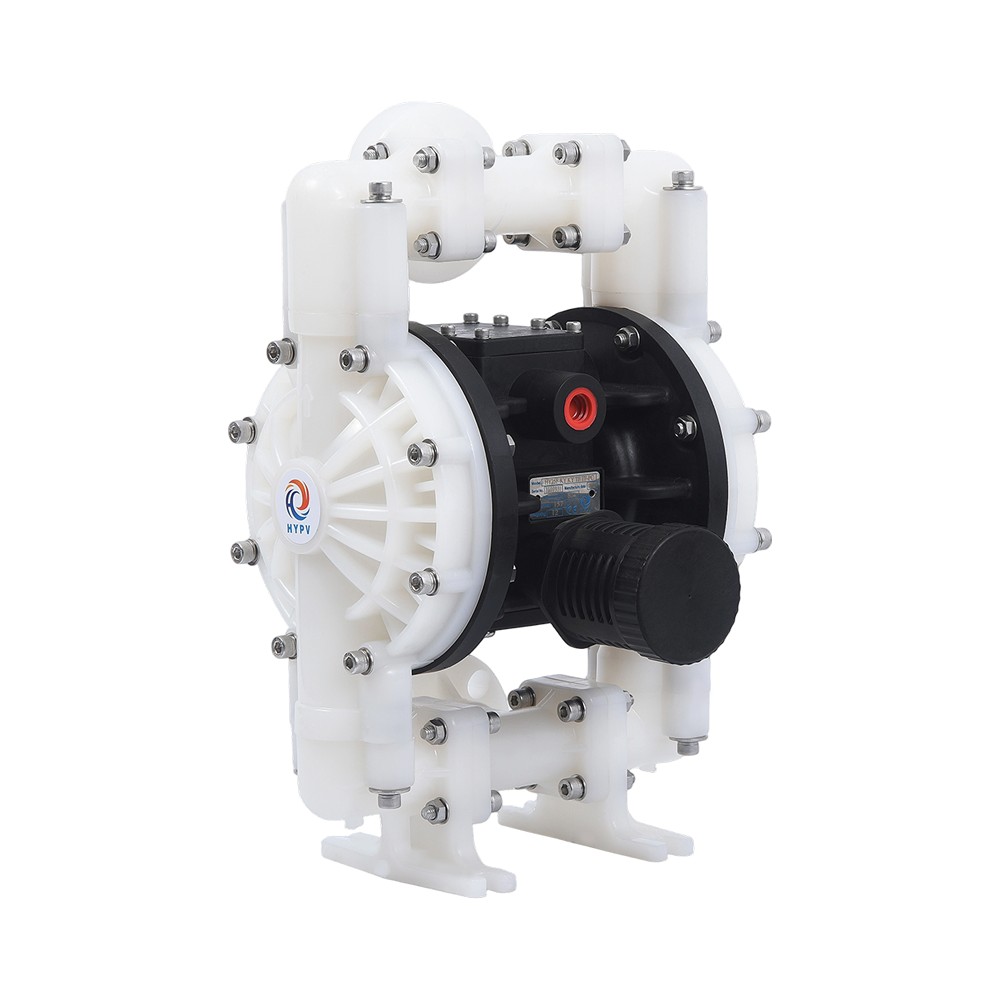

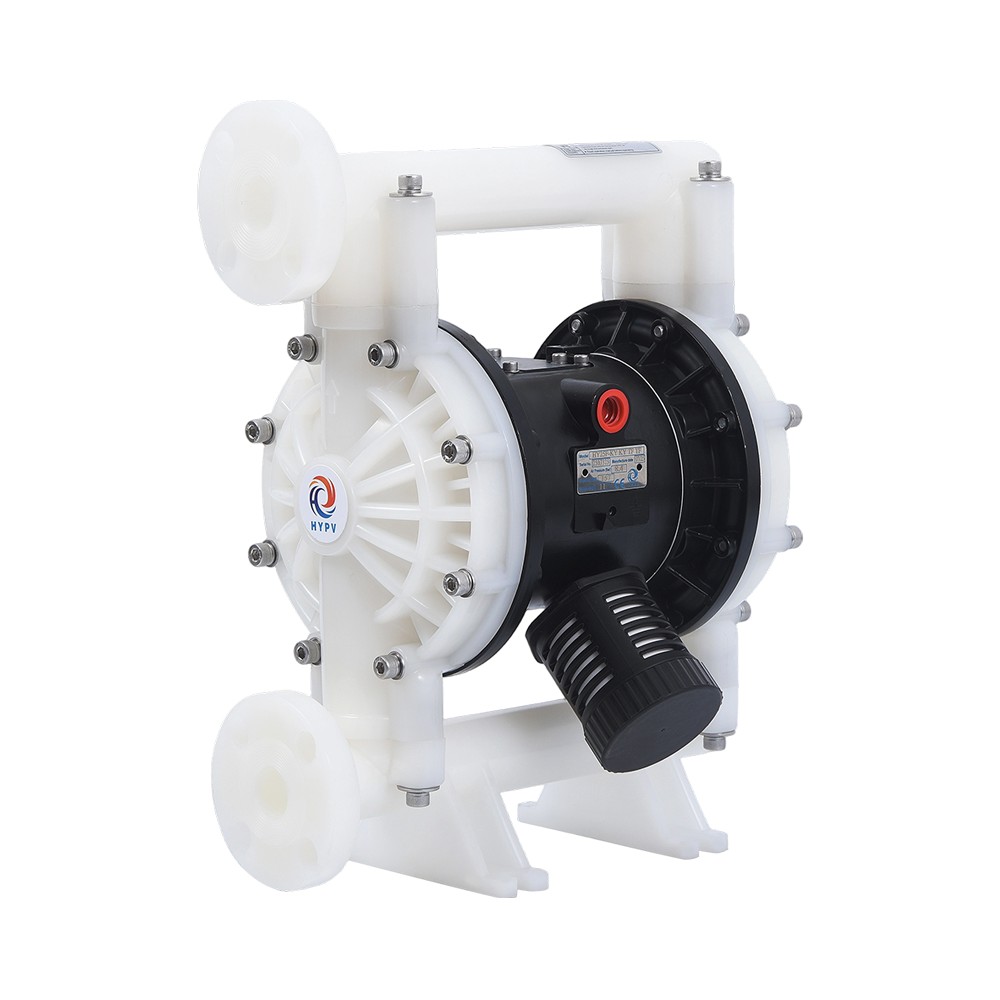

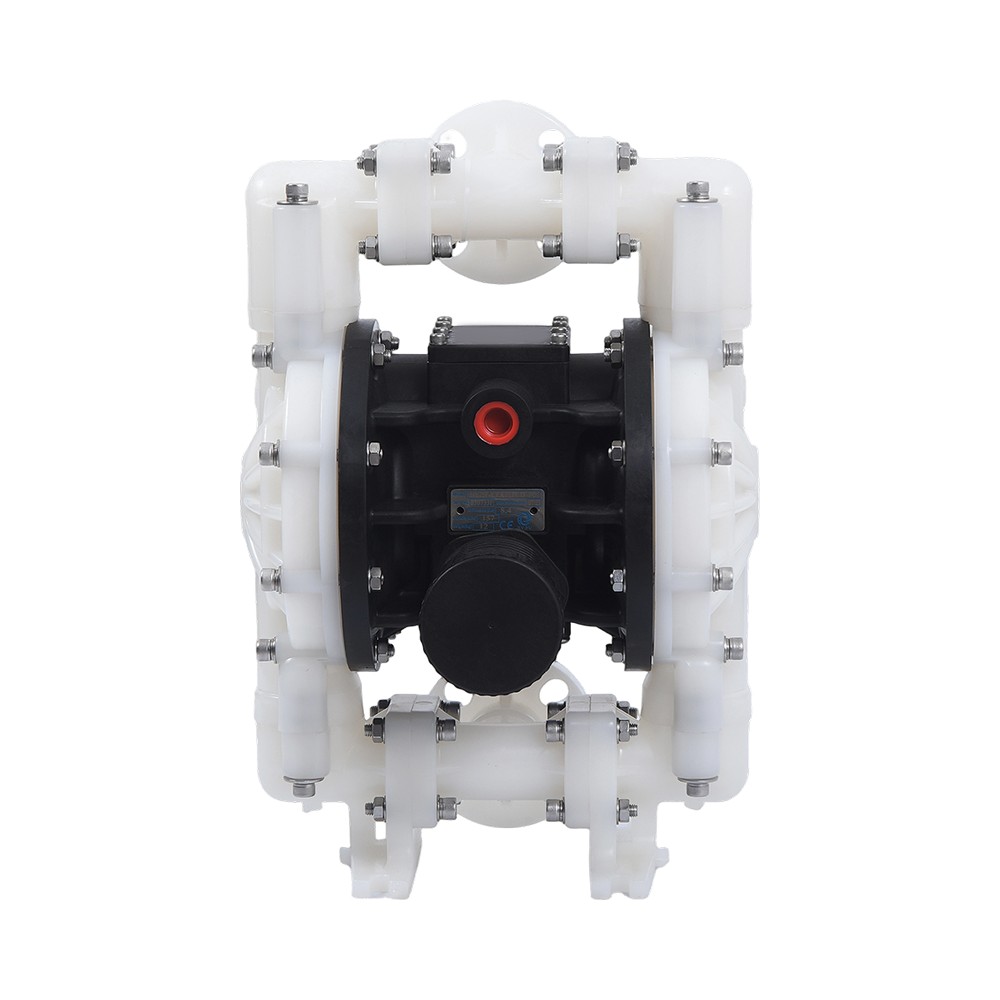

1" PVDF diaphragm pump

Product Description

Fluid inlet/outlet size

Air inlet size

1/2"

Max suction lift

Dry: 4m Wet: 8m

Max solid passing

4mm

Max flow rate

157L/min

Max delivery head

84m

Max air pressure

8.4bar

Max solid passing

4mm

Max air consumption rate

60scfm (1.7m³/min)

Main body material

PVDF

19 Oct 2026 Diaphragm Pump Troubleshooting: Diagnose Air, Valve, and Diaphragm Issues
At 2 a.m., an air-operated diaphragm pump on a batch line stops moving product, and the first instinct on the floor is to open the wet end. That is usually the wrong move. In field service, four sub...
12 Oct 2026 Diaphragm Pump vs Peristaltic Pump: Key Differences, Costs, and Selection Guide
Your chemical feed skid keeps losing prime, or the dosing line needs to hold ±1% accuracy at 50 mL/min. The pump you choose between a diaphragm pump and a peristaltic pump changes maintenance interv...
10 Oct 2026 Diaphragm Pump vs Centrifugal Pump: Which One Fits Your Process Duty Best?
A 4,000 cps acrylic coating, an IBC tote that has to be emptied, and a spare centrifugal pump on the shelf. The centrifugal unit cavitates, the coating comes out sheared and thinner, and the seal st...
28 Sep 2026 Diaphragm Pump Not Pumping? 6 Causes and a Step-by-Step Troubleshooting Guide
A diaphragm pump that is "not pumping" is usually not dead — it has lost prime, hit a blocked line, or lost its drive air or power. A diaphragm pump is a positive-displacement pump that flexes an el...

Technical parameters
Max. Suction Lift Suction height changes with the different combinations of ball, seat and the diaphragm materials.	Dry 4m Wet 8m
Max. particle diameter	4mm
Suction and discharge size	1in/Npt /F
Air inlet size	1/2in
Max. flow rate	157 L/min
Max. head	84m
Max. air inlet pressure	8.4bar
Max. air consumption	60scfm(1.7m³/min)
Main body material	PP Acetal PVDF
