Polypropylene Diaphragm Pump

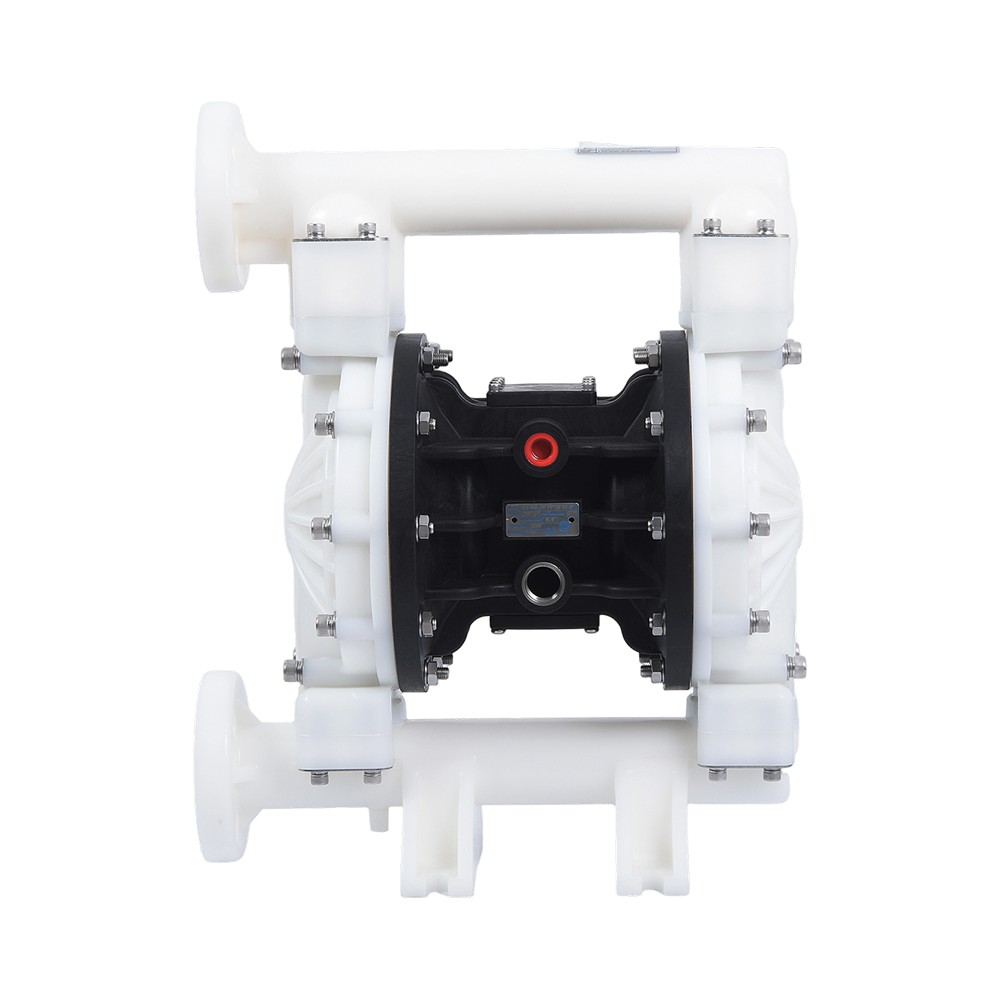

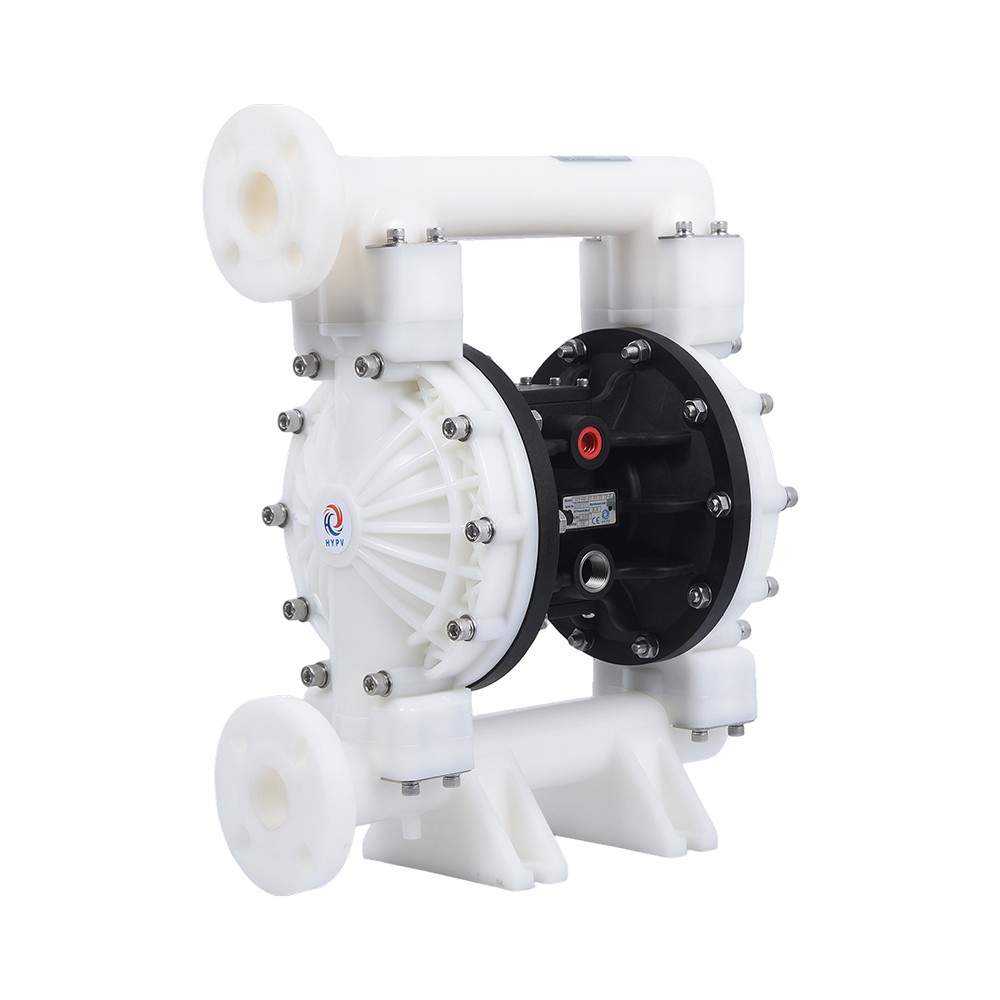

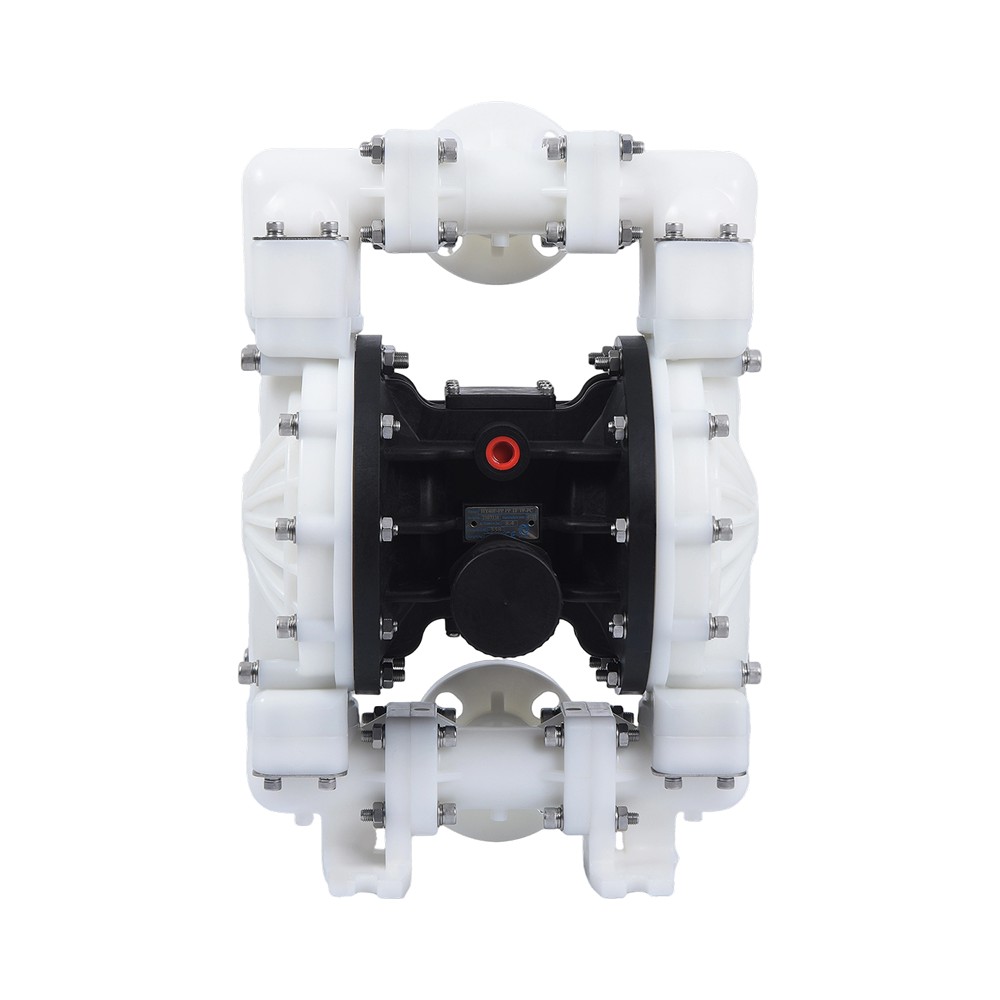

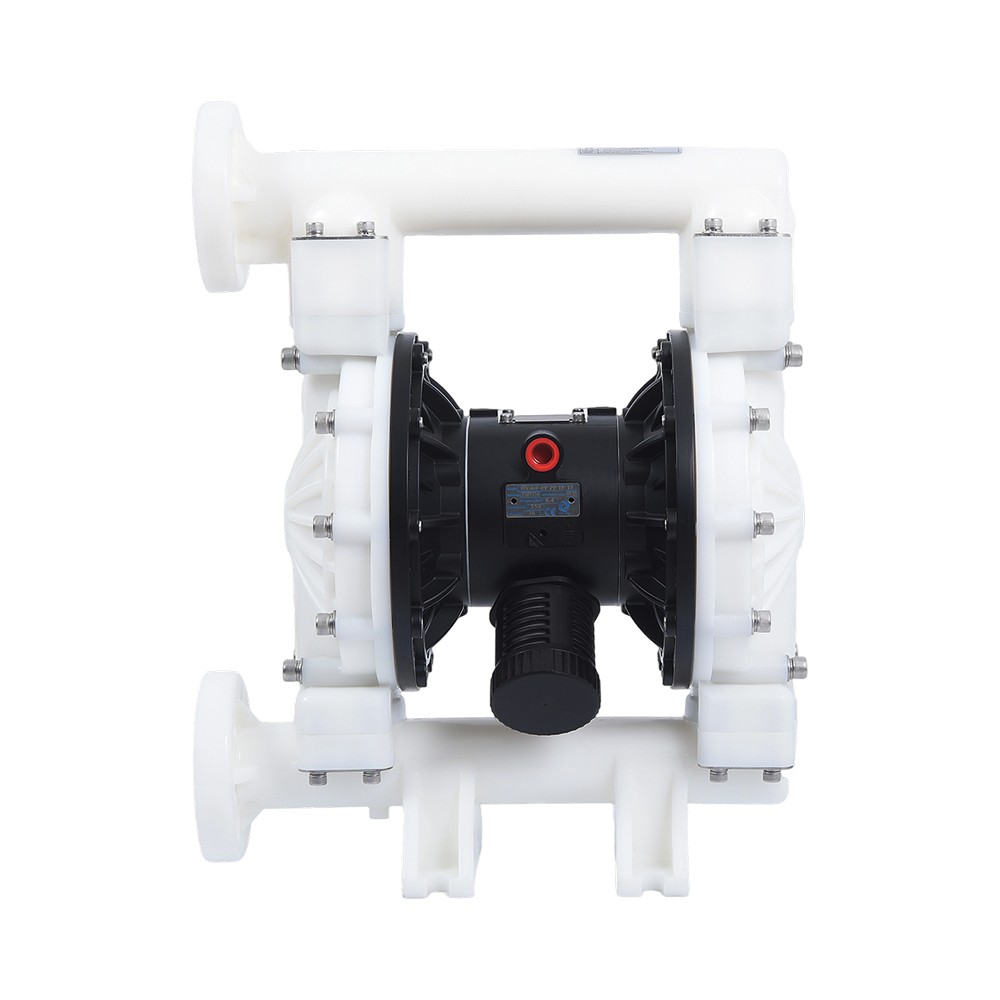

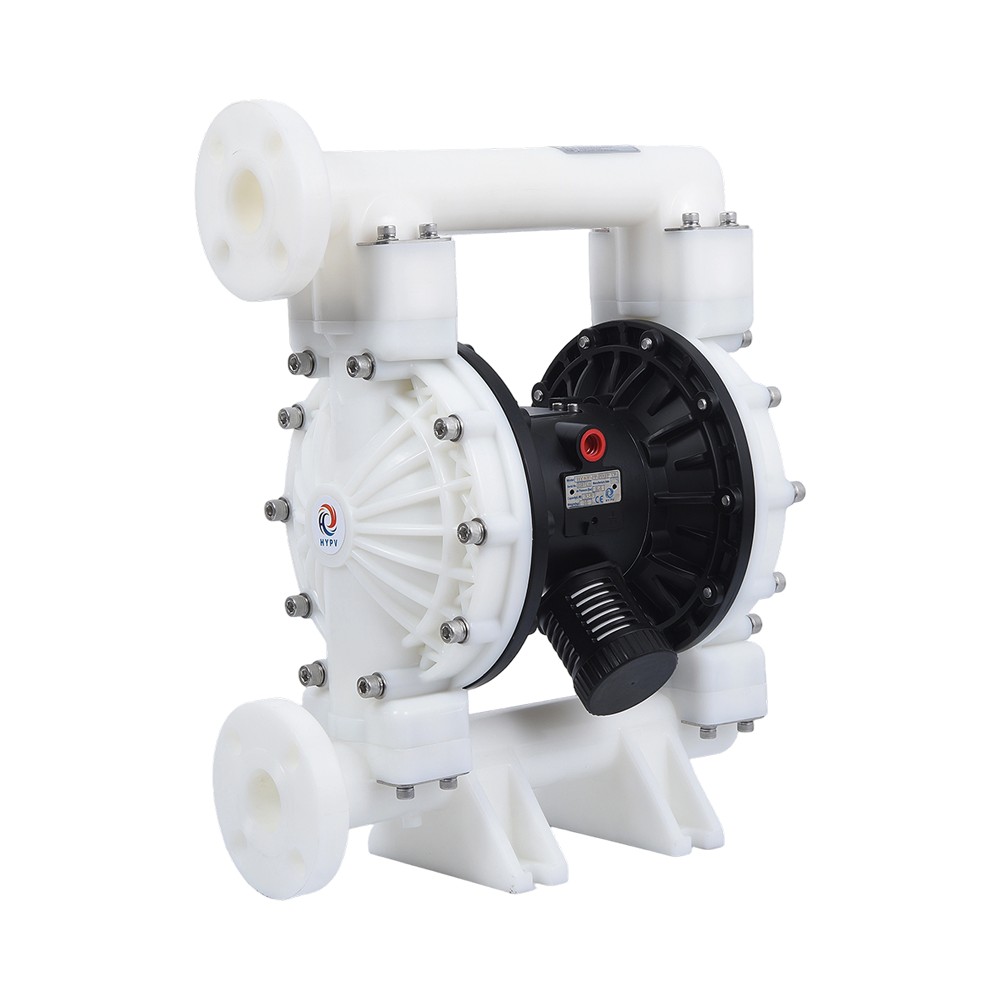

1-1/2" PP diaphragm pump

  • 1-1/2
  • 1-1/2
  • 1-1/2
  • 1-1/2
  • 1-1/2
  • 1-1/2
PREV   |   NEXT

+ Contact us

Product Description

Fluid inlet/outlet size

1.5"

Air inlet size

1/2"

Max suction lift

Dry: 5m Wet: 8m

Max solid passing

5mm

Max flow rate

358L/min

Max delivery head

84m

Max air pressure

8.4bar

Max solid passing

5mm

Max air consumption rate

125scfm (3.5m³/min)

Main body material

PP

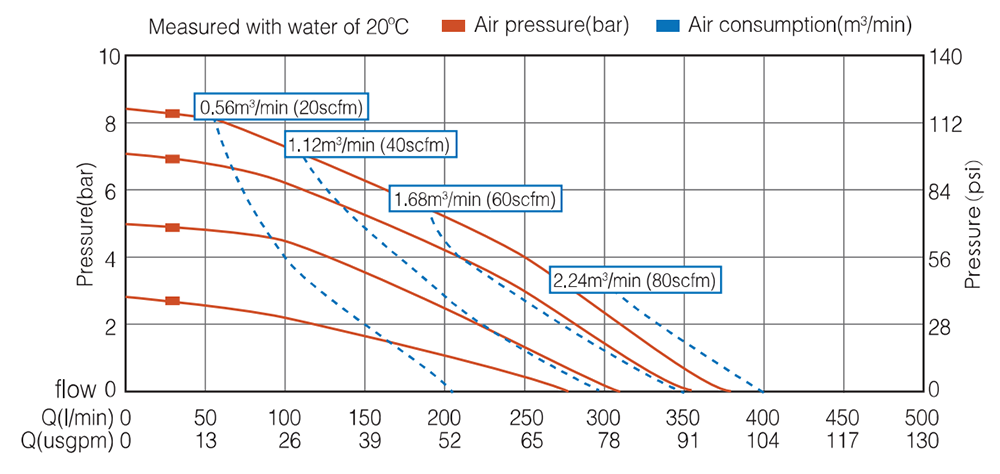

Performance curve:

Technical parameters

Max. Suction Lift
Suction height changes with the different combinations of ball, seat and the diaphragm materials.

Dry 5m
Wet 8m

Max. particle diameter

5mm

Suction and discharge size

1÷in /Npt/F

Air inlet size

1/2in

Max. flow rate

358 L/min

Max. head

84m

Max. air inlet pressure

8.4bar

Max. air consumption

125scfm(3.5m³/min)

Main body material

PP Acetal PVDF

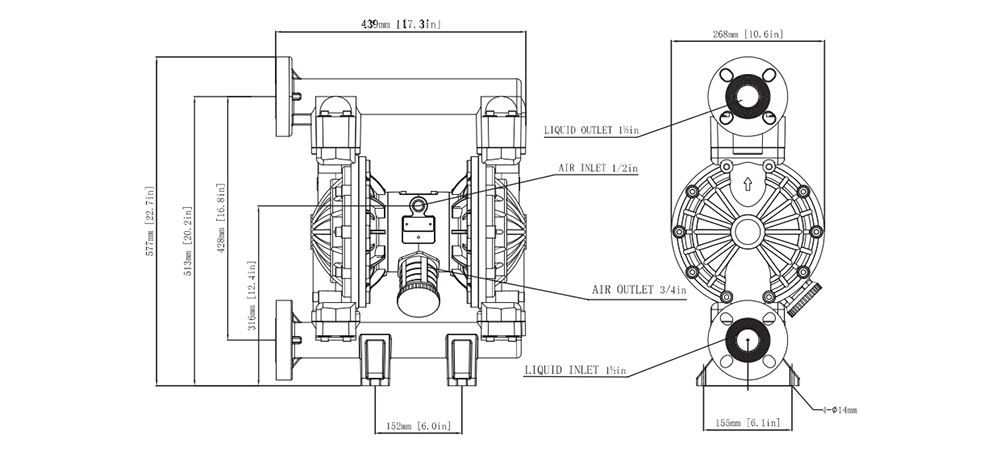

Installation size
