Polypropylene Diaphragm Pump

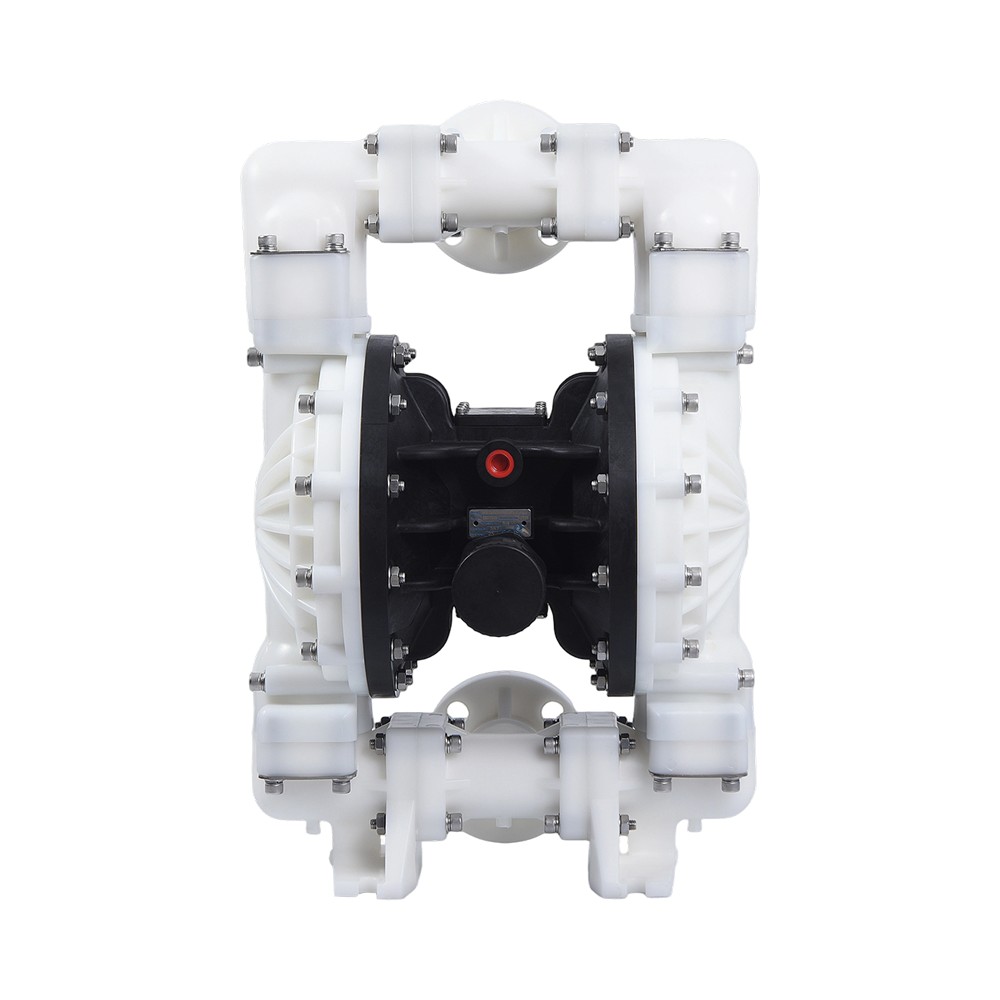

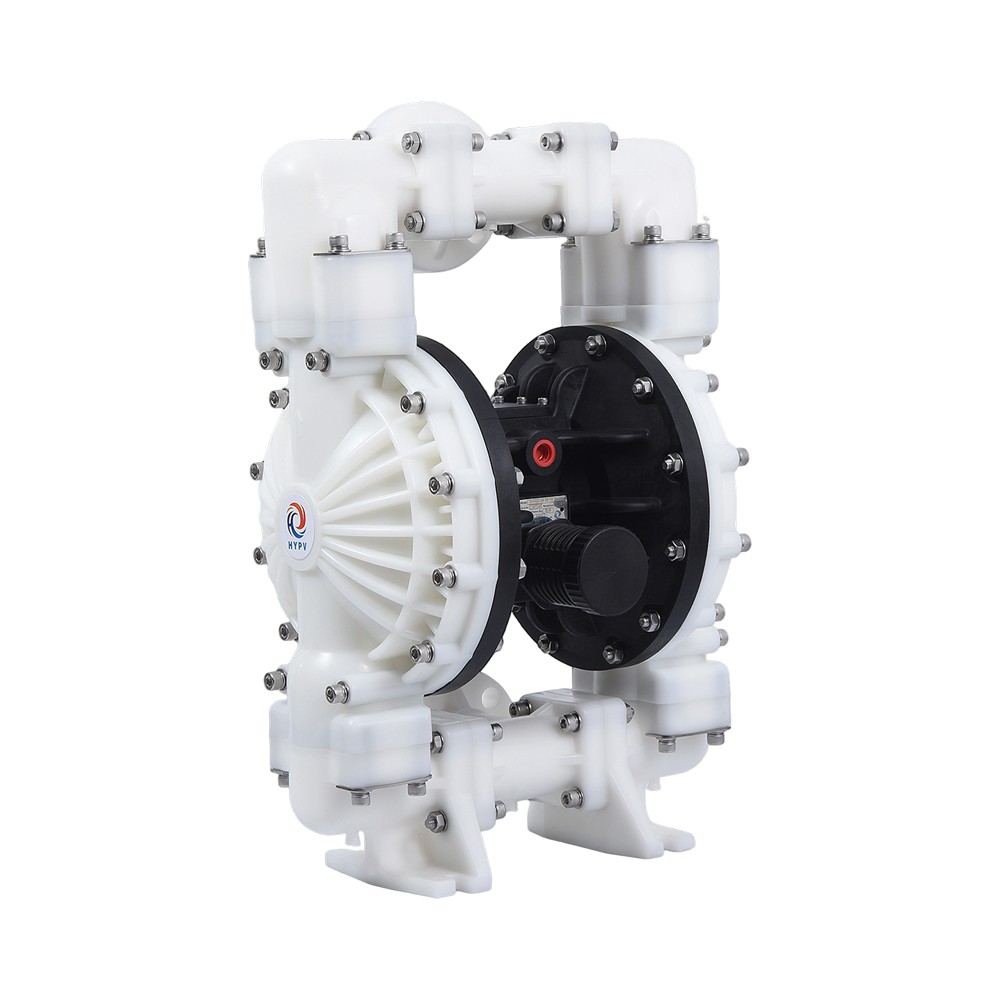

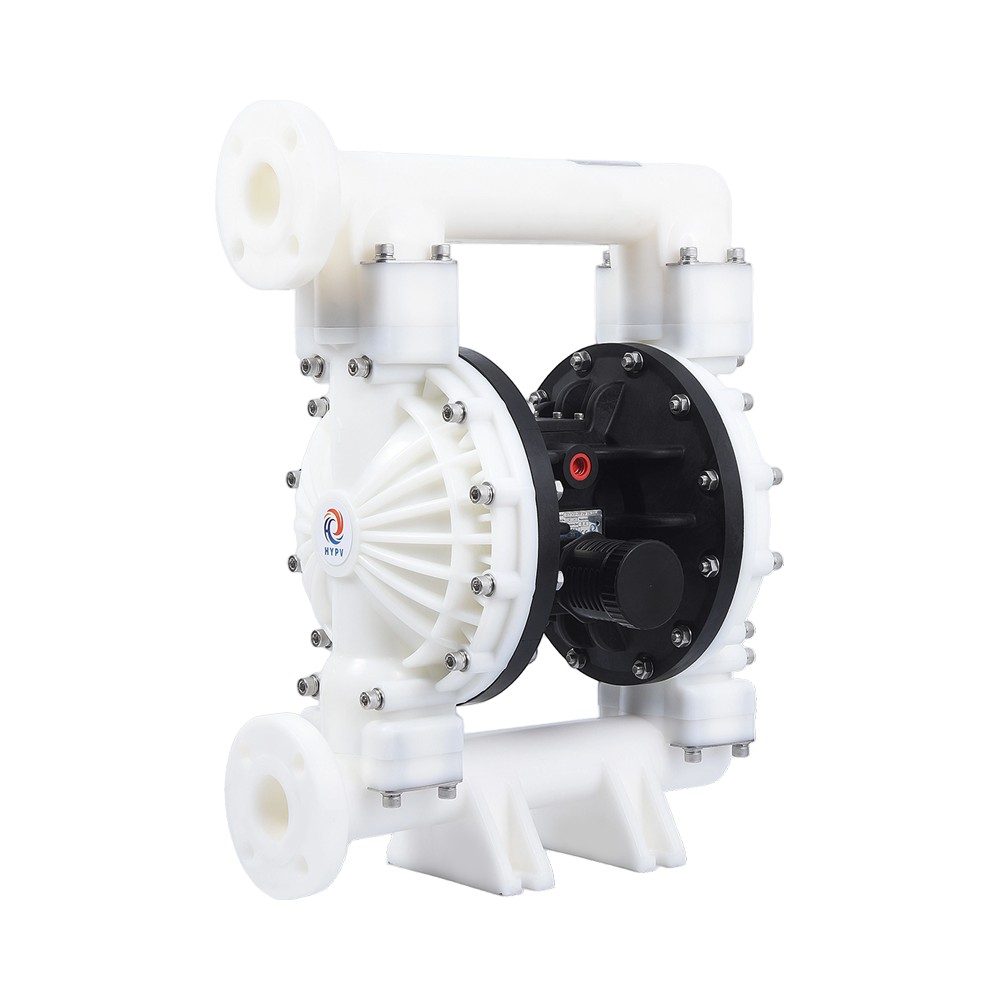

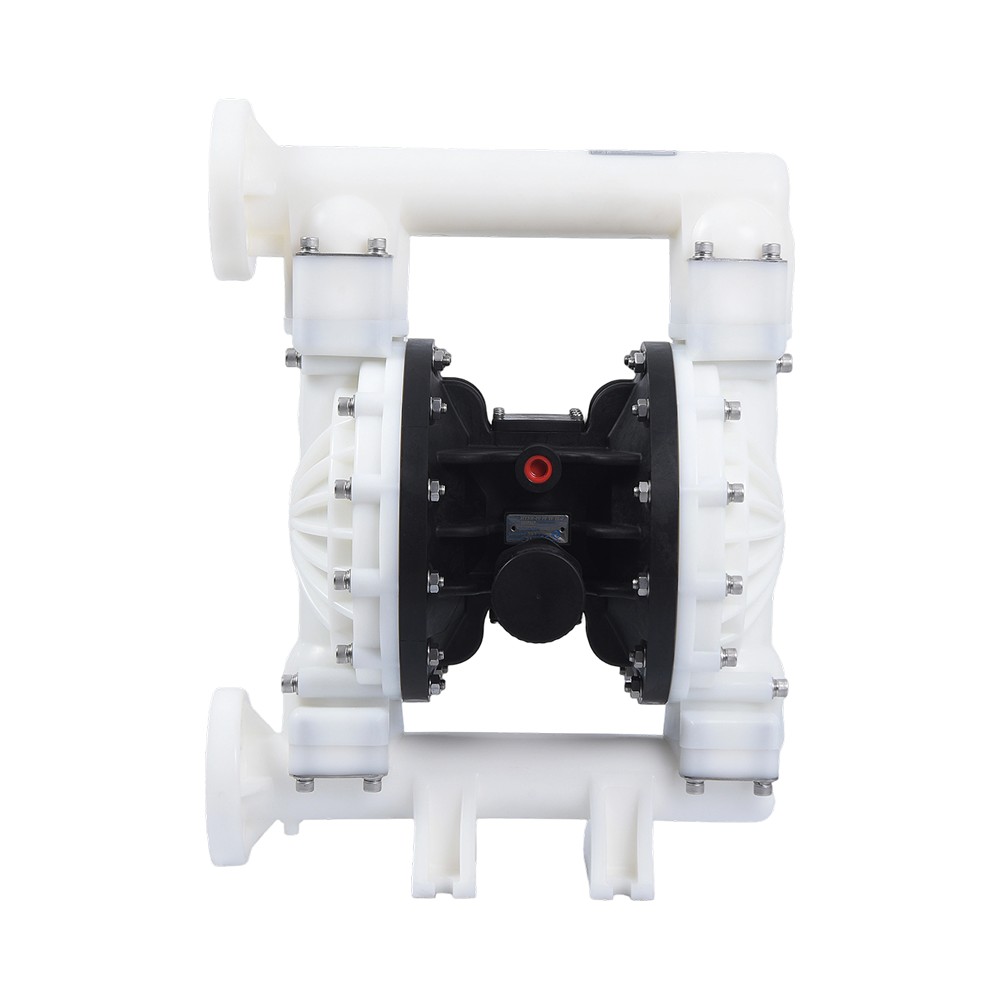

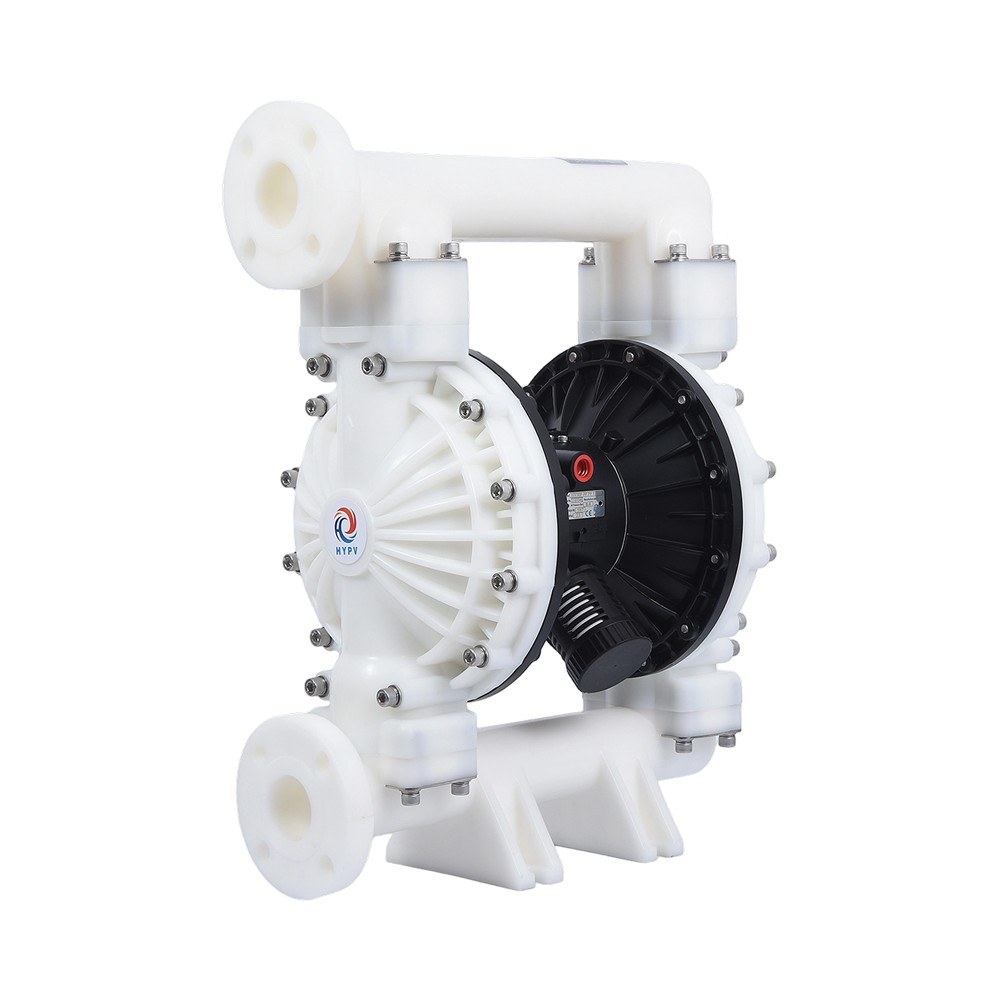

2" PP diaphragm pump
Product Description
|
Fluid inlet/outlet size |
2" |
|
Air inlet size |
1/2" |
|
Max suction lift |
Dry: 5m Wet: 8m |
|
Max solid passing |
6mm |
|
Max flow rate |
587L/min |
|
Max delivery head |
84m |
|
Max air pressure |
8.4bar |
|
Max solid passing |
6mm |
|
Max air consumption rate |
175scfm (4.9m³/min) |
|
Main body material |
PP |
Performance curve:
|
Technical parameters |
|
|
Max. Suction Lift Suction height changes with the different combinations of ball, seat and the diaphragm materials. |
Dry 5m Wet 8m |
|
Max. particle diameter |
6mm |
|
Suction and discharge size |
2in /Npt /F |
|
Air inlet size |
1/2in |
|
Max. flow rate |
587 L/min |
|
Max. head |
84m |
|
Max. air inlet pressure |
8.4bar |
|
Max. air consumption |
175scfm(4.9m³/min) |
|
Main body material |
PP Acetal PVDF |
Installation size
